織布機經軸盤管尺寸

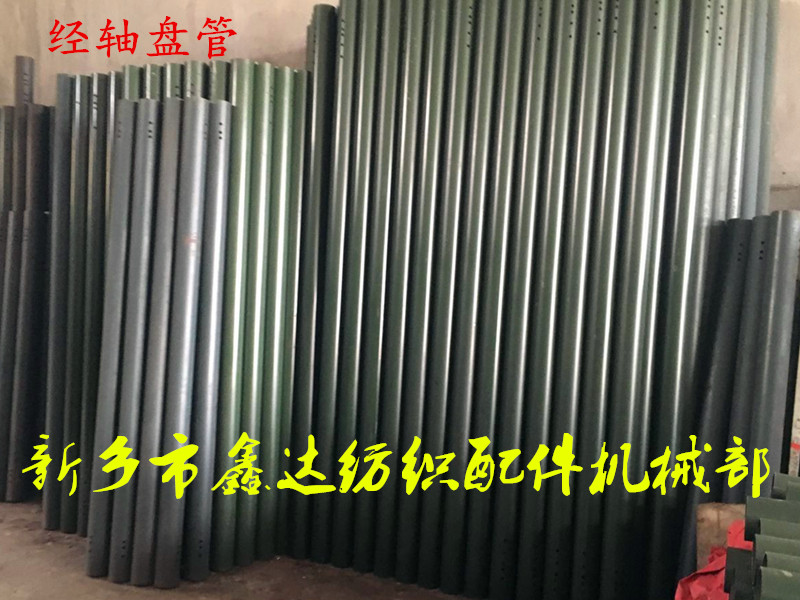

　　有梭織布機經軸盤管B15X、3434、4102的詳細尺寸!~

　　B15X是指1511型織布機的經軸盤管;件號3434是指1515型織布機的經軸盤管，代號4102是指GA615型織布機的經軸盤管。其外直徑均為110mm，厚度5mm。

　　42英寸經軸盤管長度：1327mm

　　44英寸經軸盤管長度：1378mm

　　46英寸經軸盤管長度：1429mm

　　50英寸經軸盤管長度：1530mm

　　52英寸經軸盤管長度：1581mm

　　56英寸經軸盤管長度：1685mm

　　63英寸經軸盤管長度：1859mm

　　67英寸經軸盤管長度：1960mm

　　75英寸經軸盤管長度：2164mm

　　以上尺寸適合所有織布機(有梭)，請按照織布機的尺寸參考數值!~

　　There woven cloth warp coil B15X、3434 and 4102detailed dimensions! ~

　　B15X refers to the 1511 loom warp coil; part number3434 refers to the 1515 loom warp coil, code 4102refers GA615 type loom warp coil. Outer diameter are 110mm, thickness of 5mm.

　　42"inches warp coil length: 1327mm

　　44" inches warp coil length: 1378mm

　　46" inches warp coil length: 1429mm

　　50" inches warp coil length: 1530mm

　　52" inches warp coil length: 1581mm

　　56" inches warp coil length: 1685mm

　　63" inches warp coil length: 1859mm

　　67" inches warp coil length: 1960mm

　　75" inches warp coil length: 2164mm

　　These size-fits-all looms (with shuttle), follow the loom size reference value! ~
